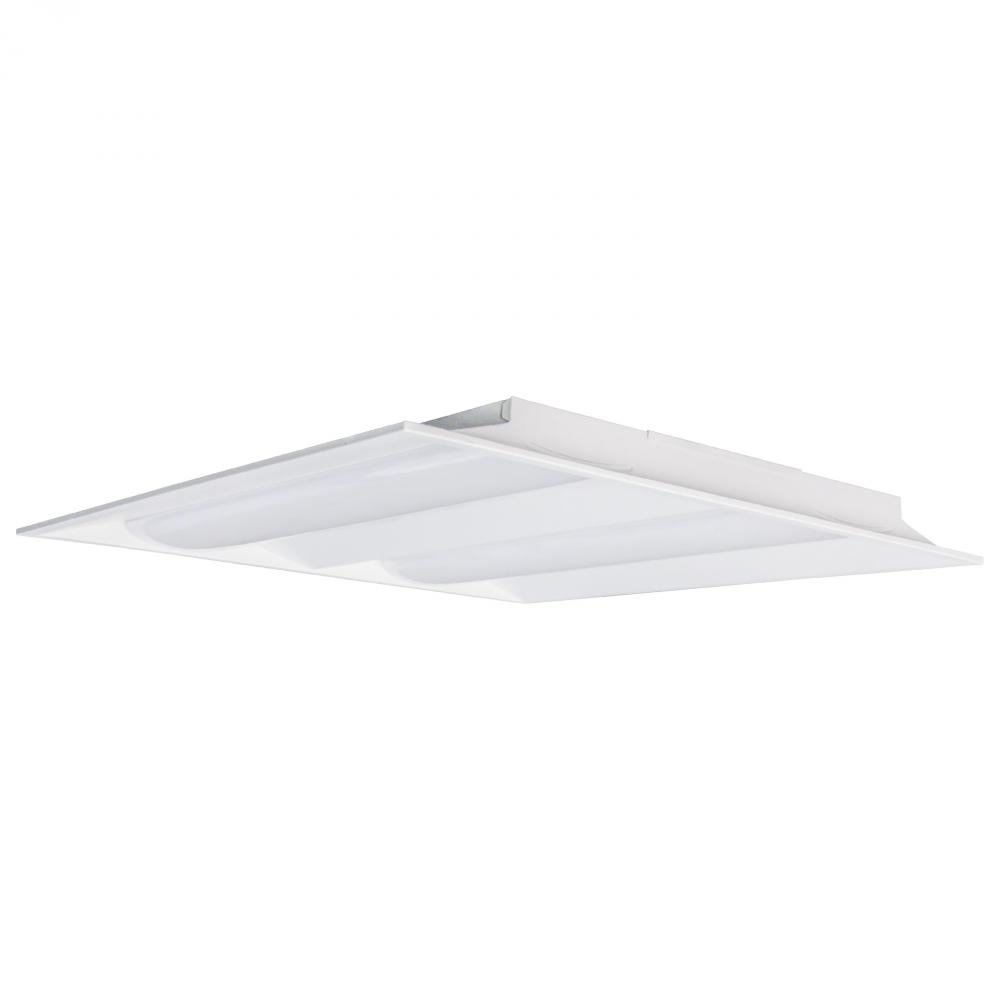

2X2 Emergency Backup; Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens (65/696) by Nuvo

Image may not reflect selected features

No Image
Available

2X2 Emergency Backup; Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens

BASE PRICE:

374

/ / 1

($374.00 / 1)

WAS

Call for Price

Item #:

65/696

Dimensions:

Height: 3.02"

Width: 23.74"

Finish:

White

Availability:

Manufacturer has 200 items available.

Recommended Items

Description

Details

Downloads

2X2 Emergency Backup; Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable

Vendor Item #:

65/696

Category:

Specialty Items

Subcategory:

Lighting Accessories

Option:

LED , Prop 65

Lumens:

3300+

Category:

Troffer

Sub Category:

Double Basket

Additional Info:

90 Minute Battery Runtime

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Dimmable:

Yes-Dimmable

Each Height:

25.71

Each Length:

25.51

Each Width:

4.33

Length:

23.74

Lumens:

3300L-4600L

Tariff Code:

9405.10.6020

Warranty:

5 Year Limited - Fixtures

Amps:

0.300-0.108/0.350-0.126/0.400-0.144A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

CRI:

Dimmable Function:

0-10V Dimming

DLC Classification:

Standard

DLC Primary Use:

2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube:

1.6435

Each Quantity:

Efficacy:

110.00/112.86/115.00 LPW

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable ( 3500K, 4000K, 5000K)

Feature 2:

3 Wattage Selectable (30W, 35W, 40W)

Feature 3:

0-10V Dimmable

Feature 4:

DLC Listed

Feature 5:

Length: 23.74 inches X Width: 23.74 inches X Height: 3.02 inches

Finish Family:

White

Fixture shape:

Square

Flicker Free:

Yes

Has Driver:

Yes

Has Emergency Battery:

Yes

HID Equiv:

70W-100W

IC Rated:

Yes

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO|NUVO's 65-696 2x2 Emergency Backup Double Basket square troffer comes in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technol

Material:

Steel

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Panel Size:

2x2

Power Factor:

0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's versatile Single and Double Basket troffers now come in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, our t

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

2X2 EM DOUBLE BASKET TROFFER

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Weight Lb.:

9.36

Manufactured By:

Nuvo
