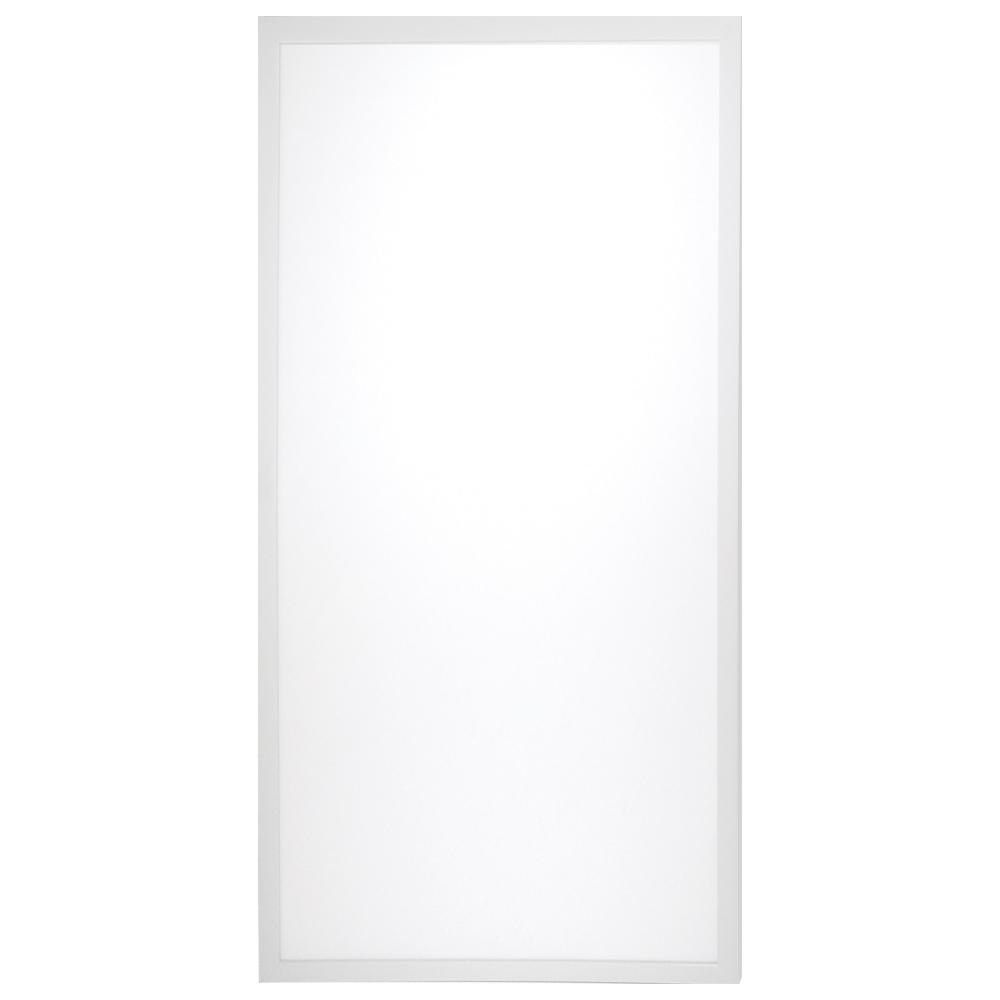

LED Emergency Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 100-277 Volt; (65/576R1) by Nuvo

Image may not reflect selected features

No Image
Available

LED Emergency Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 100-277 Volt;

BASE PRICE:

338

/ / 1

($338.00 / 1)

WAS

Call for Price

Item #:

65/576R1

Dimensions:

Height: 3.06"

Width: 23.75"

Finish:

White

Availability:

Manufacturer has 691 items available.

Recommended Items

Description

Details

Downloads

LED Emergency Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Vendor Item #:

65/576R1

Category:

Specialty Items

Subcategory:

Fluorescent Decorative Panels

Finish:

White

Option:

LED , Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Category:

Flat Panel

Sub Category:

Backlit Emergency

Style:

Utility

Additional Info:

Driver Specs - VDC38-48V; 630/810/1030mA

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

25.2

Each Length:

49.02

Each Width:

4.33

Length:

47.72

Lumens:

3300L-5750L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

3.54

Air Tight:

Amps:

0.300-0.108/0.400-0.144/0.500-0.181A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Standard

DLC Primary Use:

2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube:

3.0954

Each Quantity:

Efficacy:

110.00/113.13/115.00 LPW

FCC Compliant:

Yes

Feature 1:

3500K/4000K/5000K CCT Selectable

Feature 2:

30W/40W/50W Wattage Selectable

Feature 3:

Integrated emergency battery backup with 90-minute run time

Feature 4:

Flicker Free, Even Light Distribution

Feature 5:

0-10V Dimmable

Feature 6:

50,000 average rated hours of use

Feature 7:

DLC Listed

Finish Family:

White

Fixture shape:

Rectangle

Flicker Free:

Yes

Has Emergency Battery:

Yes

IC Rated:

Yes

Incandescent Equivalent:

150W-175W

Indoor Outdoor:

Indoor

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO|NUVO's LED Backlit 2X4 Flat Panel 65-576R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t

Material:

Aluminum / Steel

Mounting Procedure:

Ceiling

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Pack Type:

Box

Panel Size:

2x4

Photocell:

No Photocell

Power Factor:

0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu

Safety Listing:

cETLus

SDS class:

LED_Fixture

Short Description:

2X4 LED EM BACKLIT FLAT PANEL

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

9.70%

Wattage Selectable:

Yes

Weight Lb.:

12.13

Wire Gauge:

Wire Temp Rating:

80C (176F)

Manufactured By:

Nuvo
