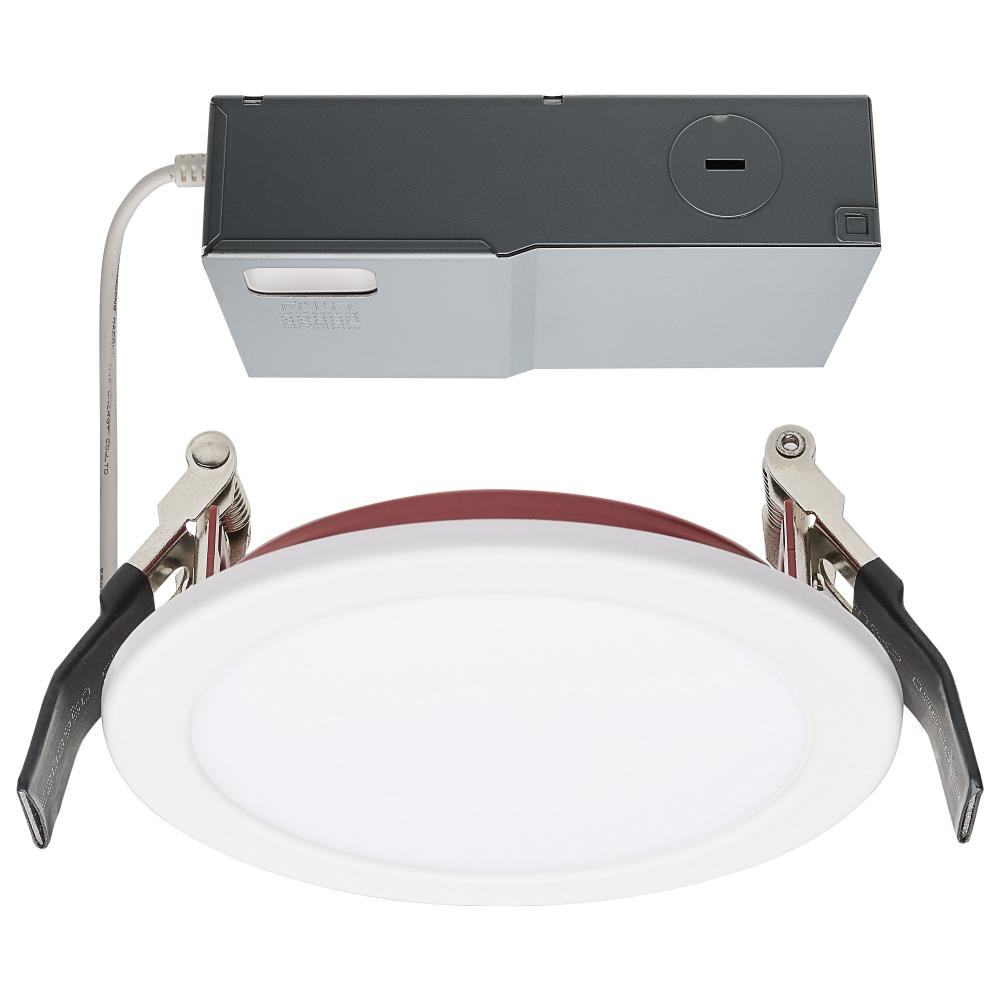

10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable; (S11868) by Satco Products Inc.

Image may not reflect selected features

No Image
Available

10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable;

BASE PRICE:

/ / 1

($55.00 / 1)

WAS

Call for Price

Item #:

S11868

Dimensions:

Height: 0.69"

Width: 4.75"

Finish:

White / Red

Availability:

Manufacturer has 4064 items available.

Recommended Items

Description

Details

Downloads

10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; Dimmable

Vendor Item #:

S11868

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

Combination Finishes , White , Red

Option:

Energy Star , LED , Prop 65

Lumens:

450-800

Kelvin:

4001-4500

Category:

Recessed

Sub Category:

Direct Wire

Style:

Specialty

Additional Info:

2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07; White Trim/Red Backplate

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

4.75

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.6010

Lumens:

800L

Ship Carton Height:

6.1

Ship Carton Length:

5.83

Ship Carton Width:

2.68

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.083-0.036A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

110

CA Prop-65:

Lead

Carton Cubic Feet:

0.0552

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

3.875 in. Cutout

Clearance Height:

4.134

Connection:

Direct Wired

Country Of Origin:

Cambodia

CRI:

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming

Efficacy:

80.00 LPW

Enclosure Rating:

ES Category:

Downlight Recessed

ES Unique ID:

ESID-2473604

FCC Compliant:

Yes

Feature 1:

Fire rated up to 2-hours

Feature 2:

Red painted backplate for easy identification

Feature 3:

5 CCT Selectable

Feature 4:

90 CRI

Feature 5:

Wet Location Rated

Feature 6:

Dimmable

Feature 7:

IC Rated

Feature 8:

Air Tight Rated

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's Dual Mode 4 inch Flat Lens Fire Rated Downlight is the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, this downlight provides two hours of protection in the event of a fire. Inc

Material:

Aluminum / Steel

Max Drywall Thickness:

1.181 in.

Mounting Procedure:

Ceiling

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace o

Safety Listing:

cULus - Certified

SDS class:

LED_Lamp

Short Description:

10WLED/4/CFR/CCT/SLF/RD/FL/RND

Sloped Ceiling Compatible:

Specification Notes:

Driver Dimensions: 4.50" x 3.00" x 1.25"

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Color:

White

Trim Material:

Metal

Wattage Selectable:

Weight Lb.:

1.2

Manufactured By:

Satco Products Inc.
